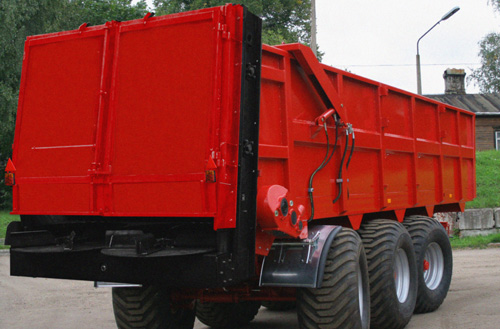

PTU-20D

The manure spreader with lifting capacity 20 tons is designed for fertilizing fields by solid manure. The machine is equipped by tridem wheel suspension with two steering axles for better maneuverability and less pressure on soil. The machine is designed for large farms and companies-contractors rendering services in treatment and fertilization of fields by contract. The Spreader PTU-20D is equipped with a spreading device with 2 horizontal augers and 2 lower discs.This type of a spreading device ensures the high quality of crushing and the largest width of spreading which allows to use the machine not only as a classical spreader, but also for fertilizing of meadows and young growth.
Can be transformed into high-capacity (40m3) trailer for haylage and green mass carriage.

Specifications

Load-carrying capacity (ton) 20
Volume of load to be carried (cubic m) 24
Maximum speed (km/h) 40
Spreading width (m) 16-20
Operating speed (km/h) 6-12
Loading height, according to (mm):
platform floor 1540
main body sides 2780
Mass with spreading device (kg) 7500
Dimensions, (mm):
length 9970
width 2550
height with spreading device 3180
Tyre size 600/50-22.5; 700/40-22.5
Track (mm) 1950
Brakes 406x120
Brakes drive pneumatic or hydraulic
Output revolutions of tractor (rpm) 1000



Uzrādītās komplektācijas un papildaprīkojuma klāsts ir informatīva rakstura un var tikt mainīts bez iepriekšēja brīdinājuma.
