LMR-16

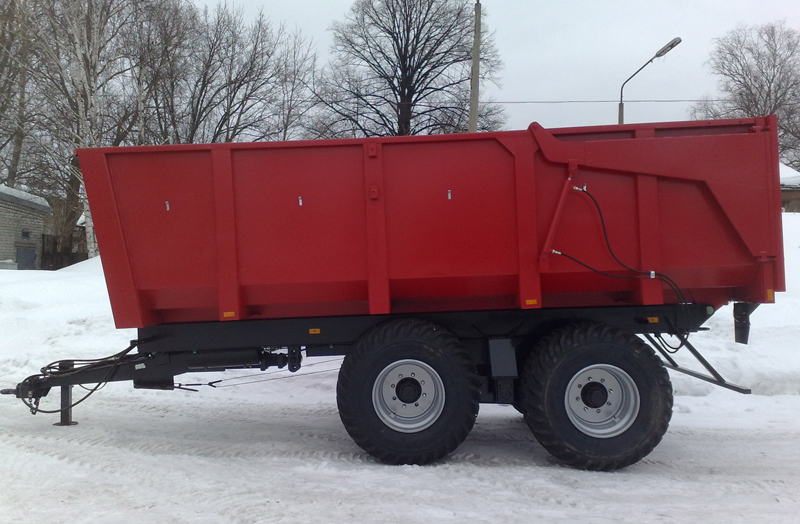

The tractor-hauled tip semitrailer LMR-16, lifting capacity is 16 ton. Having a grain loader this machine becomes an excellent tool for grain transportation.
Specifications
| Load-carrying capacity (ton) |
16 |
| Body capacity (cubic m) |
16,5 |
| Body capacity with exstension body sides(cubic m) |
22,5 or 30 |
| Mass (kg) |
5200 |
| Overall dimensions, (mm): |
| length |
7050 |
| width |
2550 |
| height with main body sides |
2700 |
| height with exstension body sides |
3200 |
| height with two exstension body sides |
3700 |
| Inner dimensions of body, (mm): |
| length |
5500 |
| width |
2150-2250 |
| height with main body sides |
1360 |
| height with exstension body sides |
1860 |
| height with two exstension body sides |
2360 |
| Body lifting angle (deg) |
50 |
| Number of cylinders |
1 |
| Tyre size |
600/50-22.5 |
| Track (mm) |
1950 |
| Drawbar |
sprung |
| Drawbar support |
jack with adjustable height |
| To be attached to tractors with power (kW) |
110-130 |
