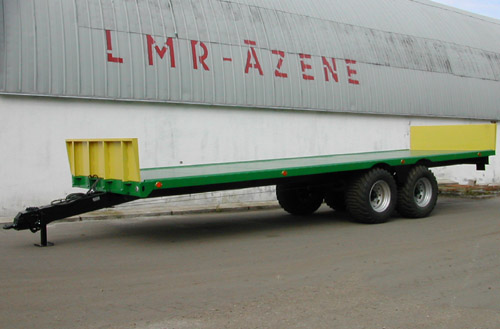

LMR-14S
The tractor-hauled semitrailer LMR-14S is designed for transportation hayrolls from field to place of storage.
Specifications
| Lifting capacity (ton) |
14 |
| Platform capacity (rolls) |
22 (by mass 650 kg), 18(by mass750) pcs |
| Mass (kg) |
3550 |
| Maximum speed (km/h) |
40 |
| Maximum tyre load (kg) |
3600 |
| Overall dimensions, (mm): |
| length |
10670 |
| height according to platform floor |
1210 |
| height |
1810 |
| Dimensions of platform, (mm): |
| length |
9000 |
| width |
2500 |
| Wheel suspension |
balancer |
| Tyre size |
16.5/70-18 14PR, 550/45-22,5, 600/40-22,5 |
| Track (mm) |
1830 |
| Brakes |
300x90 |
| Brakes drive |
hydraulic or pneumatic |
| Drawbar |
with a rubber absorber |
| Drawbar support |
jack with adjustable height |
| To be attached to tractors with power (kW) |
85-100 |
